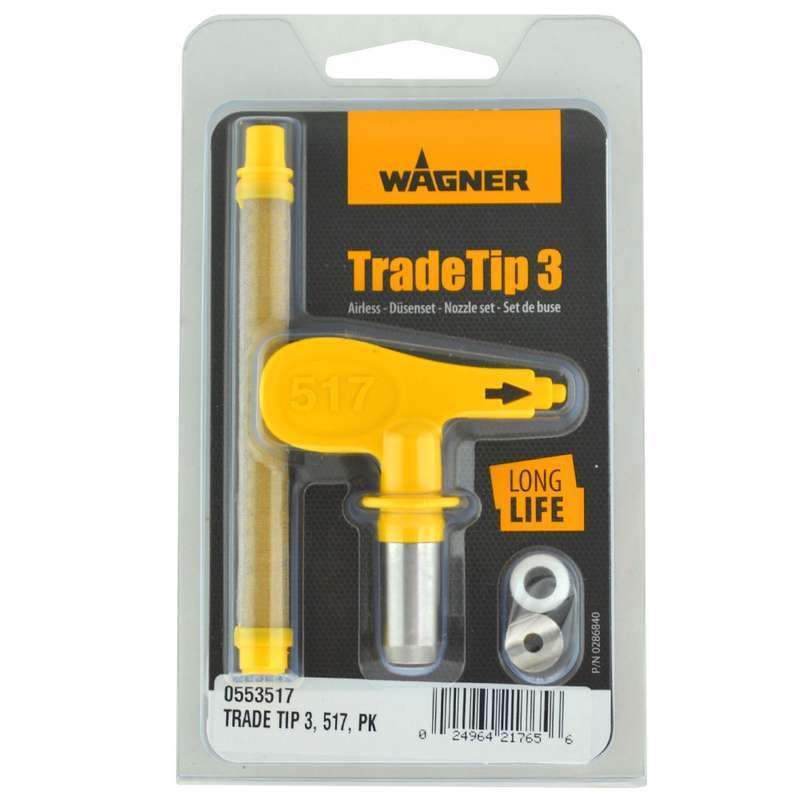

Wagner Tradetip3 reversible


SKU: TradeTip3 Categories: , ,

Wagner Tradetip3 reversible

The Wagner Trade Tip offer a wide processing spectrum. The application goes from priming to glazes. The scope of delivery includes one matched gun filter (PF) each with double coating. Thus, the matching filter is always available.

Different versions:

  • W553-215: size 215 – fillers, Rostschutz (0,38mm Bohrung, 20° Spritzwinkel) PF=yellow
  • W553-311: size 311 – Synthetic resin lacquers, PVC-Lacke (0,28mm Bohrung, 30° Spritzwinkel) PF=red
  • W553-313: size 313 – primers, base coats, fillers (0,33mm Bohrung, 30° Spritzwinkel) PF=red
  • W553-411: size 411 – Synthetic resin lacquers, PVC lacquers (0,28mm Bohrung, 40° Spritzwinkel) PF=red
  • W553-413: size 413 – primers, base coats, fillers (0,33mm Bohrung, 40° Spritzwinkel) PF=red
  • W553-417: size 417 – Anticorrosive paints, latex paints, dispersions (0,43mm Bohrung, 40° Spritzwinkel) PF=yellow
  • W533-421: size 421 – Flame protection (0,53mm Bohrung, 40° Spritzwinkel) PF=white
  • W553-423: size 423 – Roof coating (0,58mm Bohrung, 50° Spritzwinkel) PF=white
  • W553-425: size 425 – Thick film materials, corrosion protection, spray filler (0,64mm Bohrung, 40° Spritzwinkel) PF=white
  • W553-535: size 535 – Thick film materials, corrosion protection, spray filler (0,90mm Bohrung, 50° Spritzwinkel) PF=white

Technical data:

  • (L x W x H): 135 x 85 x 85 mm
  • Applications: Paints, undercoats, primers, fillers, anti-rust paints, latex paints, dispersions, thick-film materials, corrosion protection, spray fillers, synthetic resin paints, PVC paints, flame retardants, roof coatings, heavy-duty applications.
  • Tip marking: 213, 215, 217, 235, 311, 313, 411, 413, 417, 419, 421, 423, 425, 427, 435, 517, 519, 523, 535, 543
  • Hole: 0,28, 0,33, 0,38, 0,43, 0,48, 0,53, 0,58, 0,64, 0,69, 0,90 und 1,1 mm
  • Spray angle: 20°, 30°, 40° und 50°
  • Beam width: 120, 150, 190 und 225 mm
  • Gun filter: rot, weiß, gelb, grün
