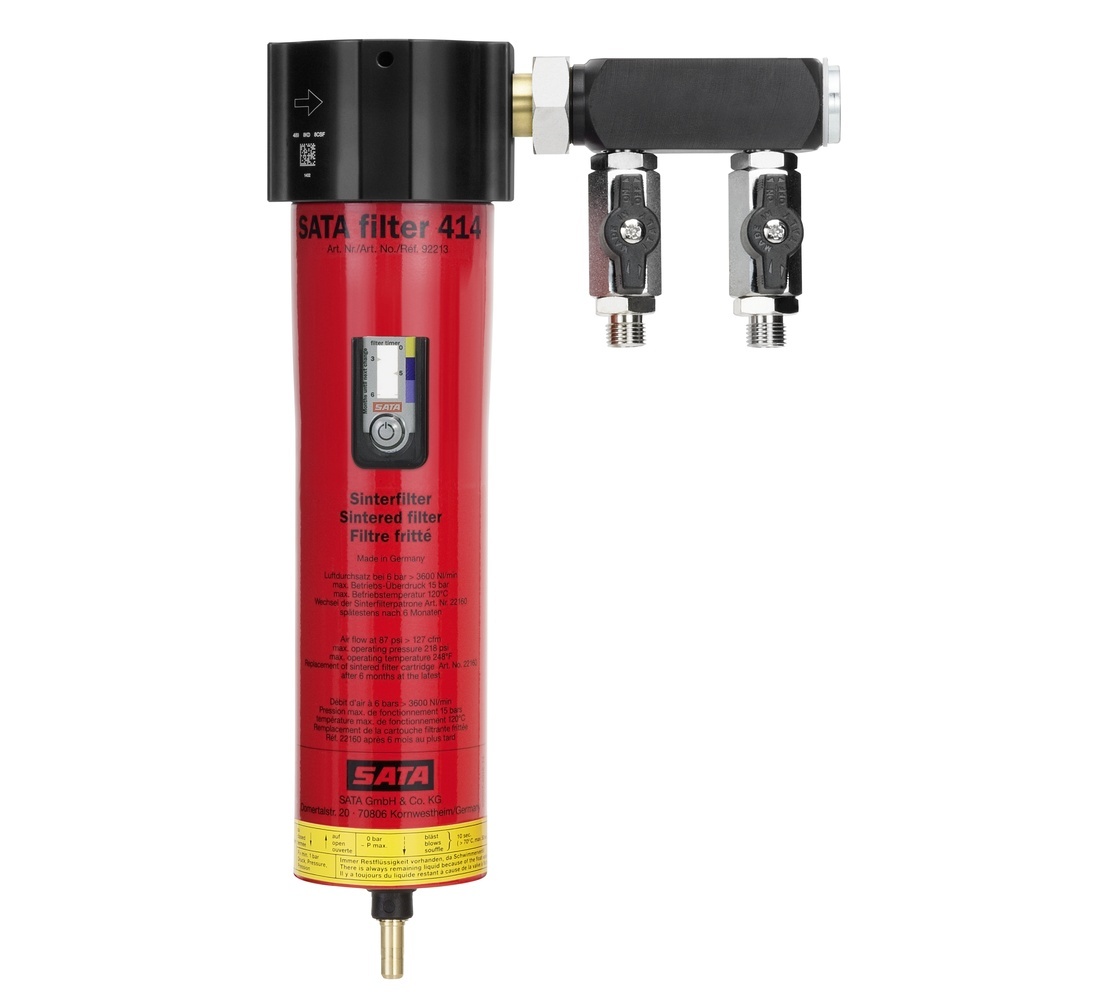

SATA Filter 414 without pressure regulator
SATA Filter 414 without pressure regulator
The filter 414 contains the cyclone separator. It reliably removes oil and water from the compressed air. The automatic condensate drain valve prevents “punctures” into the compressed air network (low maintenance). With a fineness of 5 microns, the large sintered bronze filter has a long service life and is easy to clean. Due to the robust metal housing, the filter module is suitable for temperatures up to 120°C without any problems.
The SATA Filter 424 is equipped with a pressure regulator.
- Very high air flow rate: 3,600 NL/min at 6 bar
- Air inlet: 1/2 inch
- Two outlet taps: 1/4 inch
Technical data:
- Air inlet: G 1/2 i internal
- Max. Inlet operating overpressure: 15.0 bar (225 psi)
- Max. outlet Outlet operating overpressure: 10.0 bar (145 psi)
- Air flow rate at 6 bar/87 psi: 3600 Nl/min (129.6 cfm)
- Max. Ambient temperature: 120° C
