Benefits
- No clouding or striping
- Suitable for high-gloss paints
- Spray gun supports wide, narrow, and round spray patterns
- Extremely lightweight spray gun – only 0.740 kg

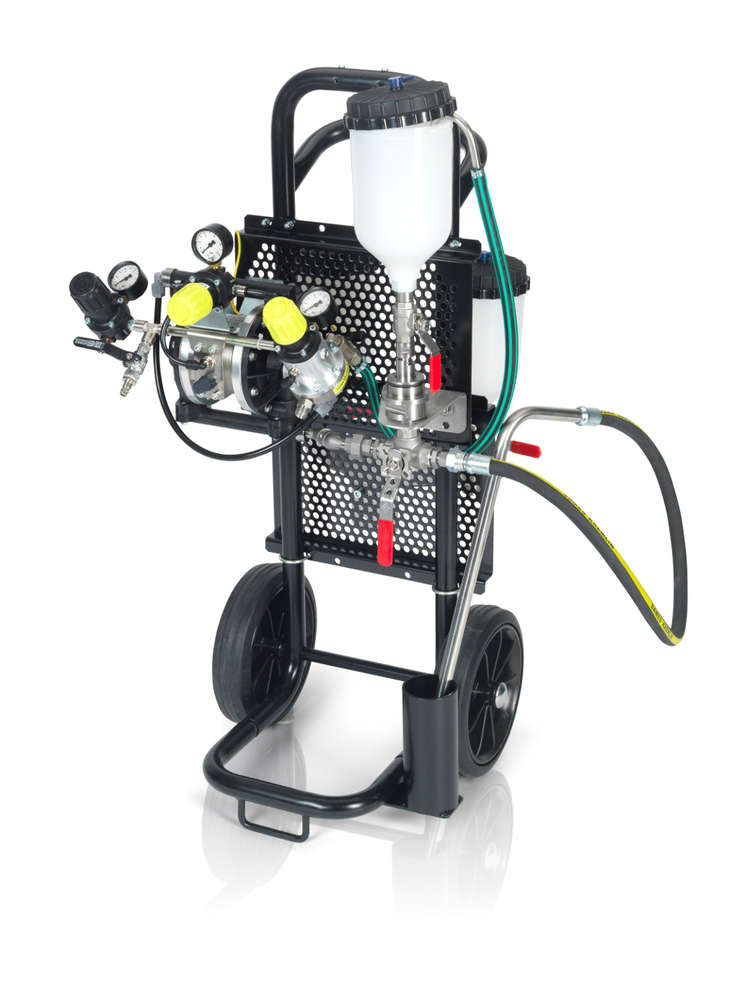

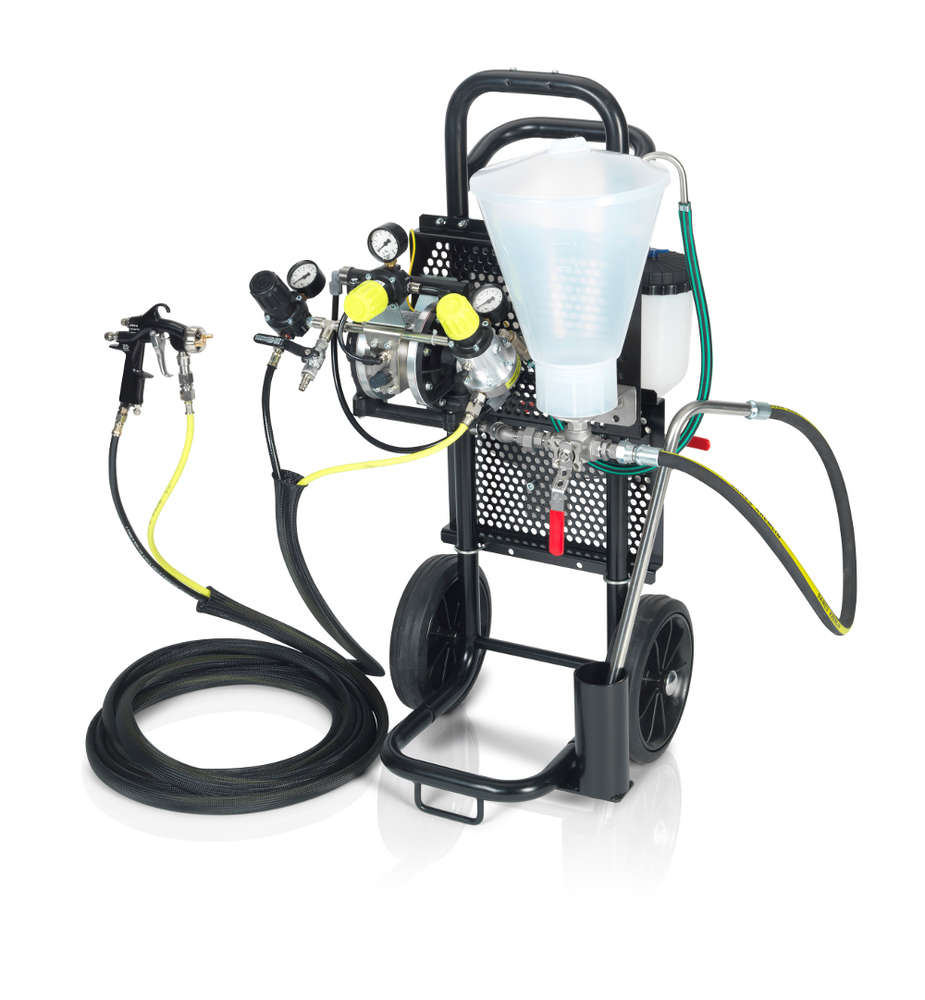

M3 Premium Double-Diaphragm Pump
The paint spraying system with three material supply options in one unit, conveniently mounted on a double-tube cart.
The M3 Premium diaphragm pump is designed for conveying paint and is particularly resistant to continuous-duty operation. The system can be cleaned quickly and easily. For excellent handling, it is equipped with an extremely lightweight spray gun weighing just 0.740 kg.
M3 – Three Material Supply Options in One Unit
The M3 combines three material supply options in a single system:
- Suction system
- 6 L upper material container
- 2 L upper material container for small quantities, including bayonet coupling
Scope of delivery
- PMP 150 double-diaphragm pump, 1:1 ratio
- Material and atomizing air pressure regulator
- Including precision material pressure regulator
- Mobile on a double-tube cart with 2 wall plates
- 6 L upper material container
- Stainless steel 3/2-way valve

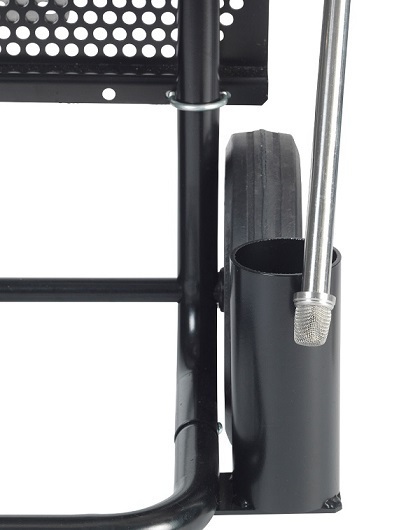

- Flexible suction system with stainless steel strainer basket
- 2 L add-on kit with cone adapter
- Ball valve and bayonet coupling
- 7.5 m hose package, NW 9
- FPro P Conv. spray gun with filter and swivel joint
- 1.5 mm nozzle

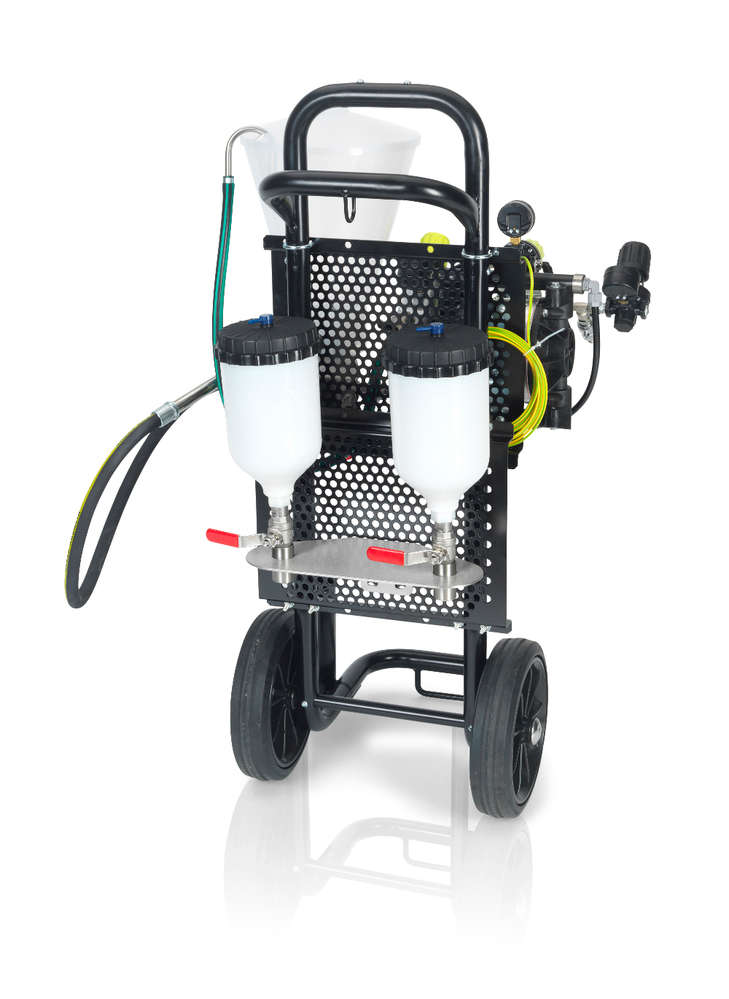

- Stainless steel wall bracket for 2 × 2 L replacement cups
- Including 2 × 2 L cups with ball valve and bayonet coupling
