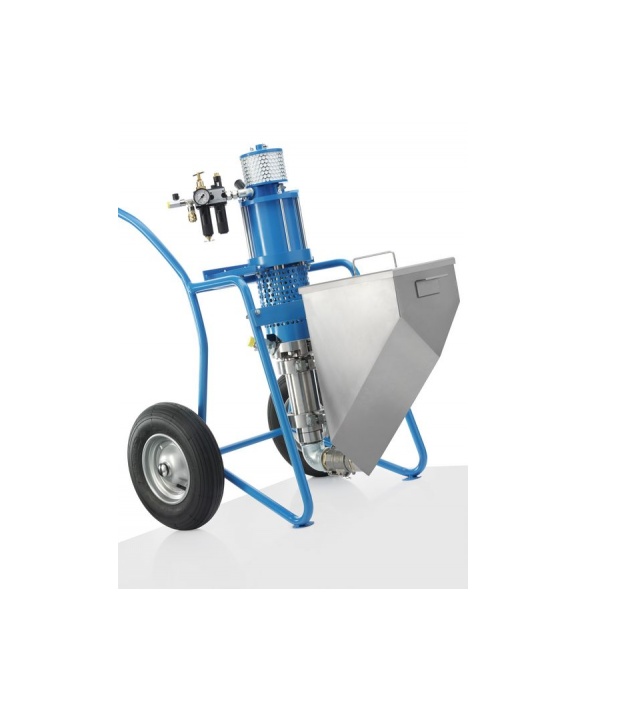

WIWA thick film / mortar pump

WIWA thick film / mortar pump

The WIWA mortar pump series is suitable for processing epoxy and water-based thick-film materials and mortars. These pumps can be rinsed with thinner without any problems. Disassembly, cleaning and reassembly of the pumps is easily solved by using quick couplings. The feed hopper is also easily removable. The large-volume pumps are equipped with extra-large diffusers and have very low wear due to the slow pump speed, even with high material throughput.

Can be used for:

  • Cement mortar
  • cementitious fire protection materials
  • cement slurry
  • filled vinyl esters

Fields of application:

  • Concrete and building restoration
  • Basement waterproofing
  • Fire protection
  • Ship and ferry decks

Technical data:

WIWA 410.09WIWA 600.12
Druckübersetzung9:112:1
Höchstzulässiger Betriebsdruck72 bar96 bar
Fördermenge je Doppelhub410 cm3600 cm3
Max. Förderleistung bei 60 DH24,6 l.36 l.
Kolbendurchmesser des Luftmotors140 mm200 mm
Kolbenhub des Luftmotors120 mm120 mm
Max. Lufteingangsdruck8 bar8 bar
Min. empfohlene Kompressorleistung3000 l./min3000 l./min
Anschluss Lufteingang (BSP)1/2″1″
Anschluss Materialeingang (BSP)2″2″
Anschluss Materialausgang (BSP)1″1″
